Applications of Self-Lubricating Copper Alloy Components in Mining Crushers

When quartz sand (with a Mohs hardness of 7) scours components at a velocity of 5 meters per second and 200 MPa instantaneous impacts hammer down like sledgehammers, traditional metal components in mining crushers find themselves in a "wear-and-tear meat grinder":

Roller bearings fracture on average every 3 weeks, requiring 17 replacements annually.

Dust infiltration leads to an average of 3.2 jamming-induced production halts per month, with each incident costing RMB 180,000 in losses.

High-frequency hammering causes bushings to wear by 15mm per month, leaving maintenance workers exhausted amidst oil and grime.

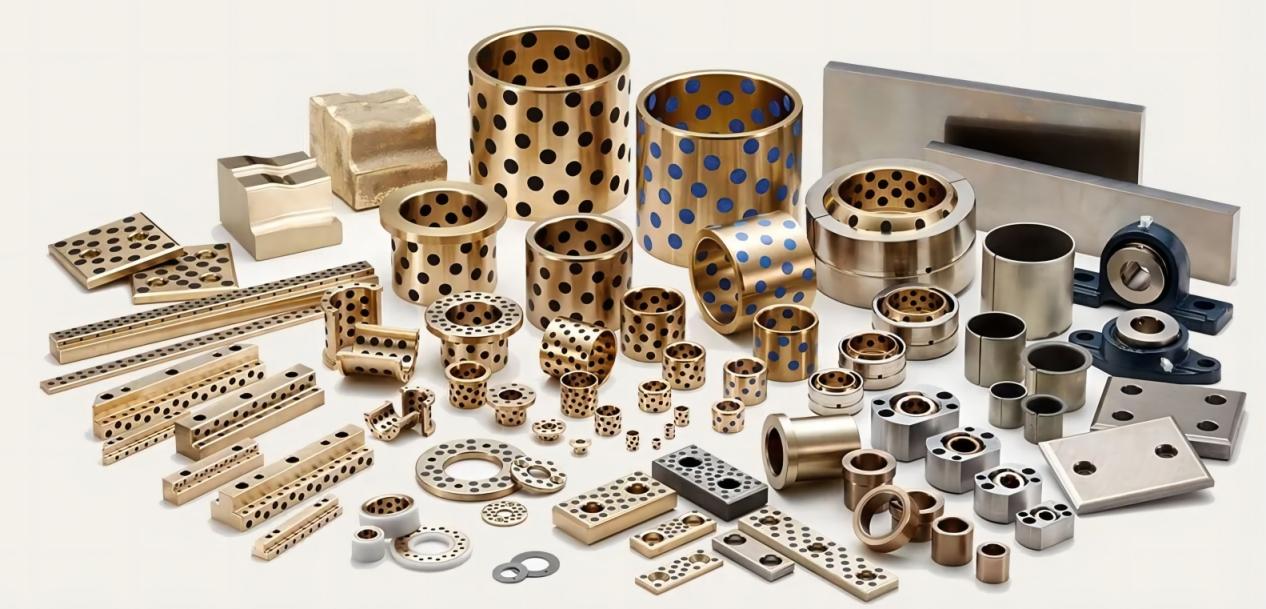

However, self-lubricating copper alloy components are rewriting the rules with materials science:

Graphite-inlaid layers release lubricating films upon heating, eliminating the need for manual oiling.

Soft matrices actively trap quartz sand, transforming abrasive particles into lubricating media.

Pre-stressing technology absorbs 80% of impact energy, extending service life by 8-10 times.

As a wear-resistant solution provider serving numerous mining enterprises, Zhejiang Mingxu explains how copper alloys enable crushers to "chew through the hardest ores without needing a digestive remedy."

I. Jaw Crusher Moving Jaw Bearings: The Ultimate Buffer Against 200 MPa Impacts

The moving jaw bearings of jaw crushers endure instantaneous squeezing impacts from ores (with peak forces of 200 MPa), causing traditional roller bearings to fracture on average every 3 weeks. The solution employs a CuZn25Al6Fe3 high-aluminum bronze matrix with a 35% graphite-inlaid layer, absorbing impact energy through pre-stressing treatment (residual compressive stress ≥ 250 MPa). The surface layer features 0.5mm-diameter honeycomb micropores that actively trap quartz sand particles. Field tests at the Dexing Copper Mine in Jiangxi Province revealed that bearing life extended from 21 days to 18 months, the temperature rise of the moving jaw swing decreased from 72°C to 38°C, and crusher capacity increased by 23% (resulting in an annual output increase of 110,000 tons of ore).

II. Cone Crusher Main Shaft Bushings: Self-Adjusting Experts for Eccentric Load Swings

Fluctuations in the inclination angle of the cone crusher's main shaft cause unilateral wear in traditional copper bushings (with a monthly average wear of 2.5mm). The innovation employs a CuSn12Ni2 tin bronze matrix with a tungsten disulfide gradient coating (friction coefficient of 0.08), combined with a spherical self-aligning structure to compensate for ±3° angular deviations, and 1.2mm-deep spiral chip evacuation grooves to discharge abrasive particles. Data from the Escondida Copper Mine in Chile indicate that monthly wear decreased from 2.8mm to 0.07mm, replacement time was reduced from 10 hours to 1.5 hours, and the product over-crushing rate was optimized from 18% to 5% (resulting in an annual benefit increase of USD 1.9 million).

III. Impact Crusher Rotor Bearing Housings: "Self-Cleaning Fortresses" in the Dust Hell

SiO₂ dust (with a concentration of 200mg/m³) raised by the rotor at 600 rpm is the number one killer of bearings. The solution employs a CuAl10Fe5Ni5 aluminum bronze matrix integrated with radial labyrinth seal slots to block dust infiltration. Simultaneously, graphite capsules rupture upon heating to release lubricating films that envelop dust, forming a lubricating medium. Field tests at Shandong Gold Group revealed that bearing jamming failures decreased from an average of 3.2 times per month to zero failures over 2 years, the rotor dynamic balance life extended by 400%, and the electricity consumption per ton of ore crushed decreased by 1.7 kWh (resulting in annual electricity cost savings of RMB 870,000).

IV. Hammer Crusher Hammer Shaft Bushings: "Energy-Absorbing Armor" for High-Frequency Impacts

To address high-frequency fretting wear caused by 1,200 hammer strikes per minute, a steel-backed copper alloy composite bushing was developed: a 20mm-thick 42CrMo steel plate base layer provides a bending strength ≥ 1100 MPa, a CuPb24Sn4 lead bronze intermediate layer traps abrasive particles, and a 0.8mm-thick graphite/MoS₂ composite layer achieves self-lubrication. Applications at a Yunnan phosphate mine demonstrated that the annual bushing wear decreased from 15mm to 0.5mm, the hammer replacement cycle extended from 3 weeks to 6 months, and equipment vibration values decreased by 65% (meeting the ISO 10816-3 vibration standard).

V. Irreplaceable Copper Alloy Genes and Economic Validation

Abrasive Particle Prison: The soft matrix (HB 80-120) traps over 95% of quartz sand (HV 1000), preventing cutting.

King of Thermal Conductivity: With a thermal conductivity ≥ 90 W/m·K, it dissipates frictional heat 5 times faster than steel.

Emergency Lubrication: Graphite capsules provide 72 hours of protection during oil outages, avoiding sudden shutdowns.

Economics: For a crushing line with a hourly output of 500 tons, the traditional solution costs RMB 4.16 million annually (including spare parts and downtime), while the self-lubricating solution costs only RMB 280,000, resulting in annual comprehensive savings of RMB 3.88 million (with a payback period of < 2 months).
