IB62 material: excellent mechanical properties and self-lubricating properties

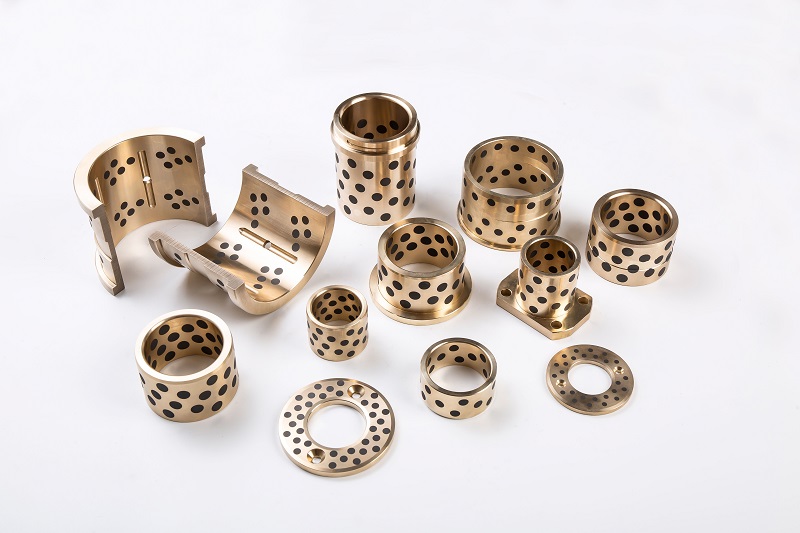

IB62 material bushing

IB62 material is a self-lubricating material with high-strength copper alloy inlaid with solid lubricants, which has excellent mechanical properties and self-lubricating propertiesThe following is a detailed explanation of IB62 material:

• Matrix composition: IB62 copper alloy is mainly composed of CuZn24Al6Fe3Mn4, a brass alloy containing elements such as copper (Cu), zinc (Zn), aluminum (Al), iron (Fe) and manganese (Mn)The chemical composition of this alloy provides excellent physical and mechanical properties
• Self-lubricating properties: IB62 material is widely used in the manufacture of self-lubricating bearingsIt realizes automatic lubrication during operation by machining holes on the working surface and filling them with solid lubricantsThis design can significantly reduce friction loss and increase the service life of the bearing
• Physical properties:
• Maximum operating temperature: The maximum operating temperature of IB62 copper alloy can reach 170℃
• Ultimate dynamic load: Its ultimate dynamic load is 100 N/mm², showing excellent load-bearing capacity
• Friction coefficient: The friction coefficient is less than 016, ensuring good lubrication
• Maximum sliding speed: The maximum sliding speed of IB62 copper alloy can reach 15 m/s
• Basic hardness: The hardness range is between HB 210 and 270, with sufficient hardness to withstand various working conditions

Wear-resistant plate made of IB62

• Application areas: Self-lubricating bearings made of IB62 are widely used in various industrial fields, including metallurgy, automobiles, motorcycles, tractors, petroleum, motors, electronics, machine tools, rolling mills, hydraulics, construction machinery, engineering machinery, water conservancy, hydropower engineering, pharmaceutical machinery, light industrial machinery, food machinery, aerospace, etc
• Equivalent grades: IB62 material has multiple equivalent grades internationally, such as C86300 in the United States, 205980120598022059803G-CuZn25Al5GK-CuZn25Al5GZ-CuZn25Al5 in Germany, HBsC4 CAC304 in Japan, etc
  In short, IB62 material has become one of the indispensable important materials in modern industrial production with its high strength, excellent self-lubricating properties and wide application fields

Zhejiang Mingxu Machinery Manufacturing Co, Ltdhas been engaged in the research and development and production of copper alloy parts and self-lubricating bearings for more than ten years, and has rich production experience and technical accumulationPlease feel free to contact us for any product and technical issues
