What Are the Differences Between JDB Bearings and JFB Bearings?

In the field of mechanical manufacturing and industrial applications, bearings, as key components, directly impact the operational efficiency and stability of equipment. JDB bearings and JFB bearings, as two common types of self-lubricating bearings, each have their own unique strengths in terms of structural design, application scenarios, and performance characteristics.

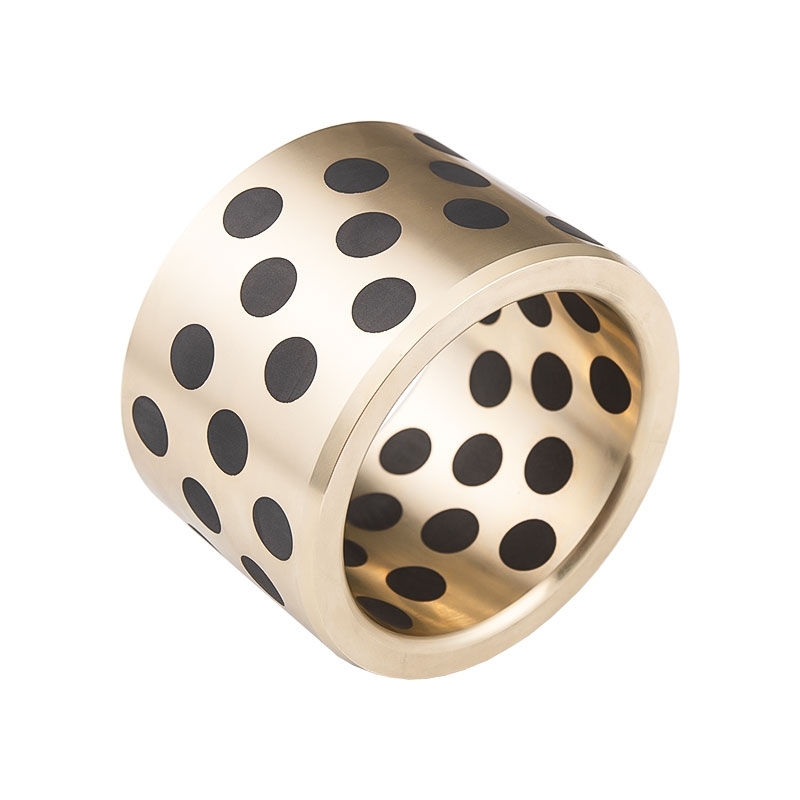

JDB Bearings

There are indeed significant differences between JDB bearings and JFB bearings in terms of structural design, application scenarios, and performance characteristics. The specific comparisons are as follows:

1. Structural Design Differences
JDB Bearings: They usually adopt a no-flange straight-sleeve design. With a simple and clear structure, they are highly suitable for general sliding or low-speed rotation scenarios.
JFB Bearings: They feature a flanged design. This design can effectively prevent axial movement, making them particularly suitable for applications that require axial positioning.

2. Application Scenario Differences
JDB Bearings: They are widely used in heavy-load, low-speed, reciprocating, or oscillating working conditions in industries such as metallurgy, mining, and hoisting machinery. They are especially well-suited for harsh environments where it is difficult to form an oil-film lubrication.
JFB Bearings: Although they are also applicable to the working conditions of JDB bearings, due to their flanged design, they are more suitable for applications that require axial load-bearing or positioning, such as certain precision machinery or specific industrial equipment.

3. Performance Characteristic Differences
JDB Bearings:
High load-bearing capacity, impact resistance, and excellent high-temperature resistance.
Strong self-lubricating ability, eliminating the need for external lubrication and reducing maintenance costs.
Good wear resistance and long service life, making them particularly suitable for harsh working conditions.

JFB Bearings:
The addition of a flange on the basis of JDB bearings enhances their axial load-bearing capacity.
Higher rotational accuracy, making them well-suited for applications with strict requirements for axial positioning.
Although the structure is slightly more complex, the axial stability is superior.

4. Material and Lubrication
Both types of bearings adopt a manufacturing process that involves embedding solid lubricating materials (such as graphite and MoS₂) into a metal matrix (such as high-strength brass or steel-based materials). However, due to the flanged design, JFB bearings may have higher requirements for material strength.

5. Selection Recommendations
If your application scenario requires simple sliding or low-speed rotation without axial positioning requirements, JDB bearings will be a more cost-effective choice.
If your application scenario requires axial load-bearing or positioning and has high requirements for rotational accuracy, JFB bearings will be more appropriate.
